With the perfect measure to the perfect quality
From design to production, a perfect measurement is the guarantee for first-class quality. Our 3D measurements with stationary systems, ensure optimized production processes in your company through direct comparison with common CAD data as well as your concrete specifications and drawings.
Depending on the task, various tactile and optical coordinate measuring machines (CMM) are used, depending on the nature and size of the object to be measured. A combination of the measuring methods is also possible without any problems.
Our coordinate measuring machines enable us to maintain even the smallest tolerances and ensure extremely high repeatability under constant climatic conditions.
Tactile CMM

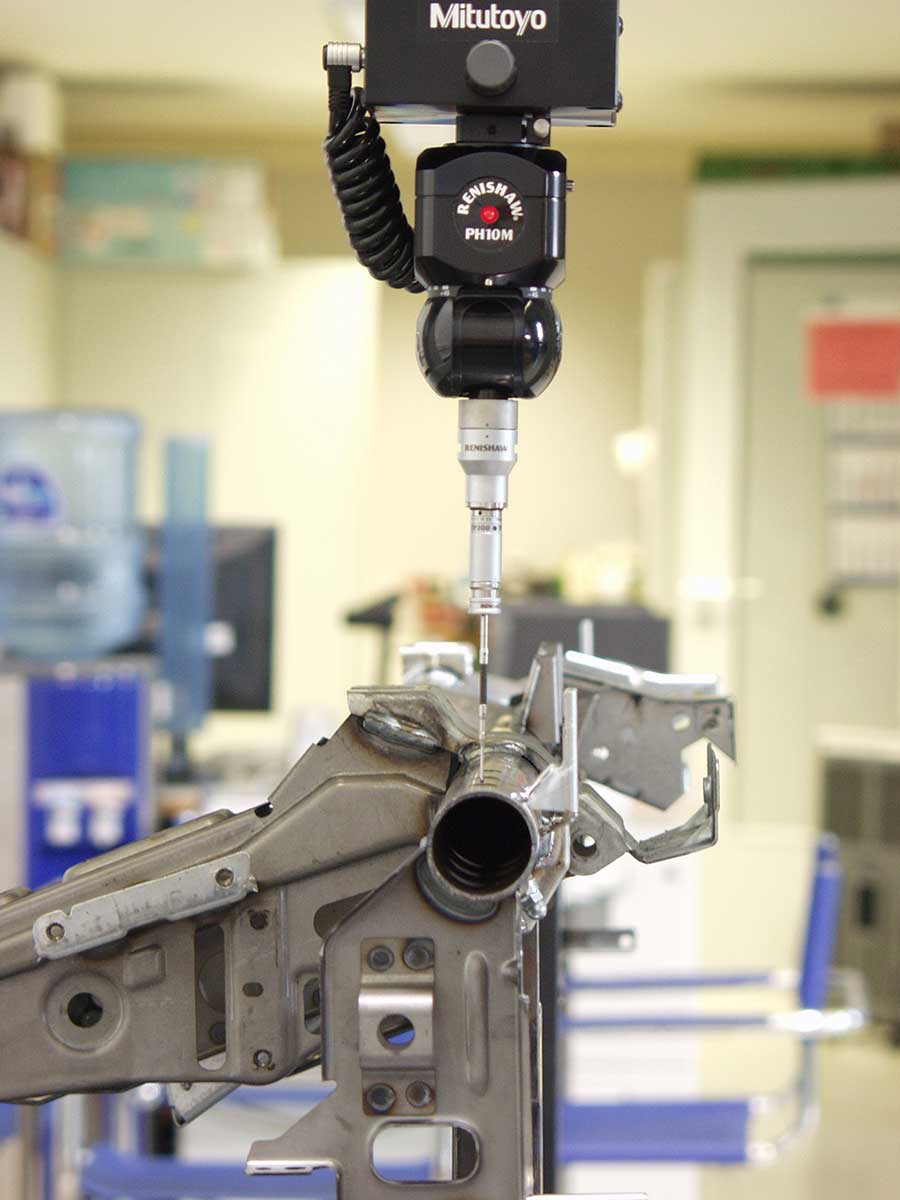

Tactile coordinate measuring machines in portal design (various)
| Manufacturer: | Mitutoyo |
| Max. Measuring range: | 1200×3000 mm |
| Accuracy: | up to 1,9 μm (ELO, MPE) |
| Calibration: | Standart-compliant calibration according to VDI 2617 with DAkkS certificate |
| Special features: | Special probe system (SP25) for tactile scanning |
Optical CMM

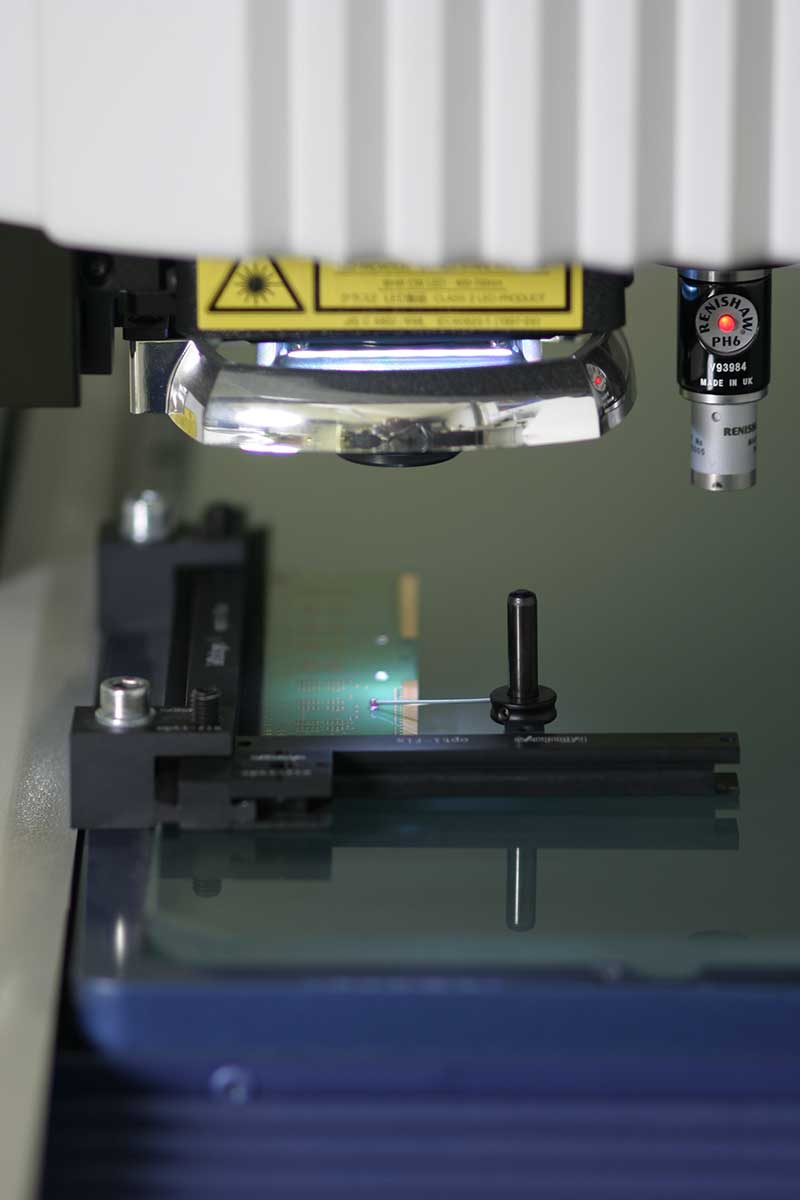

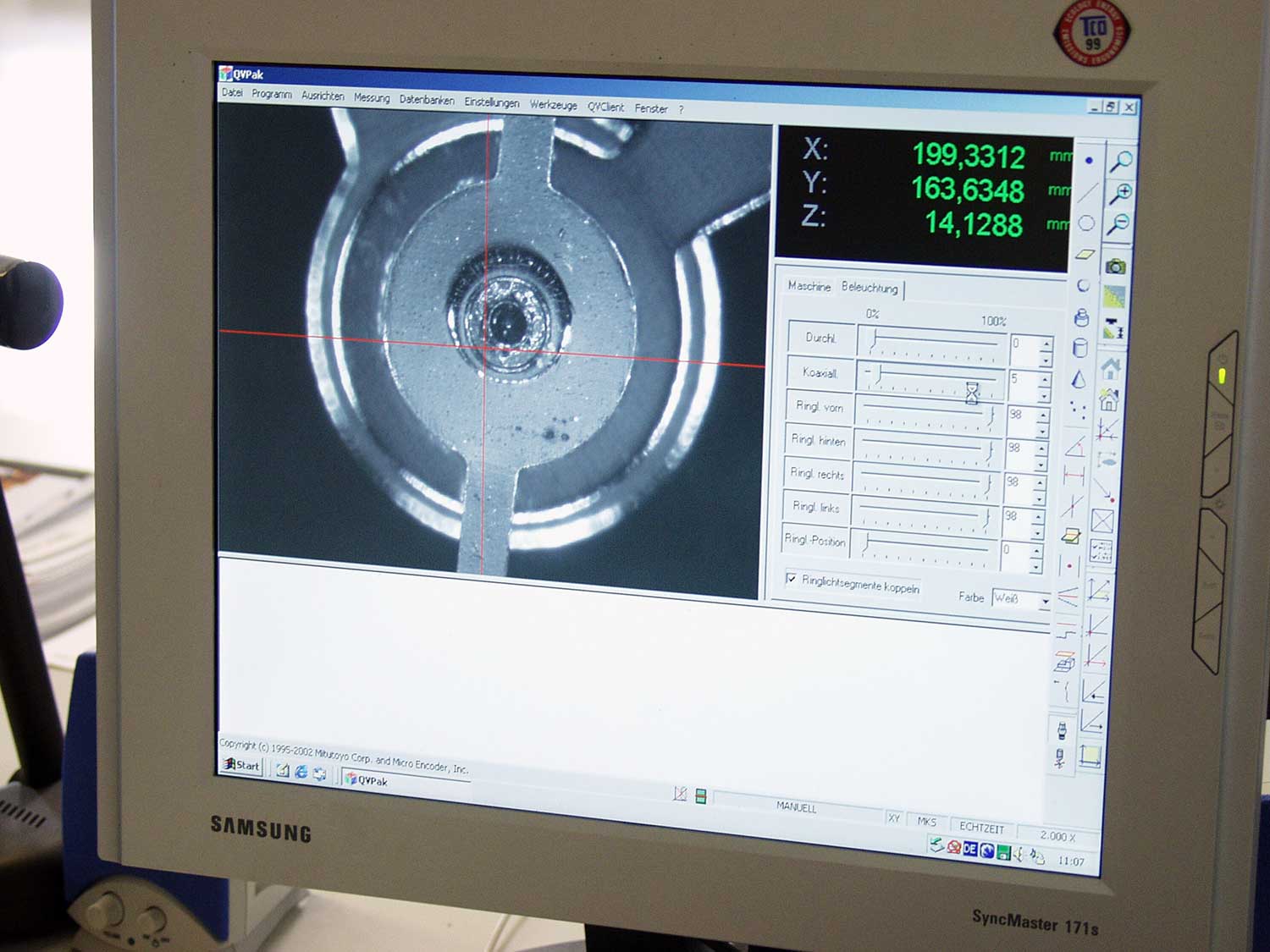

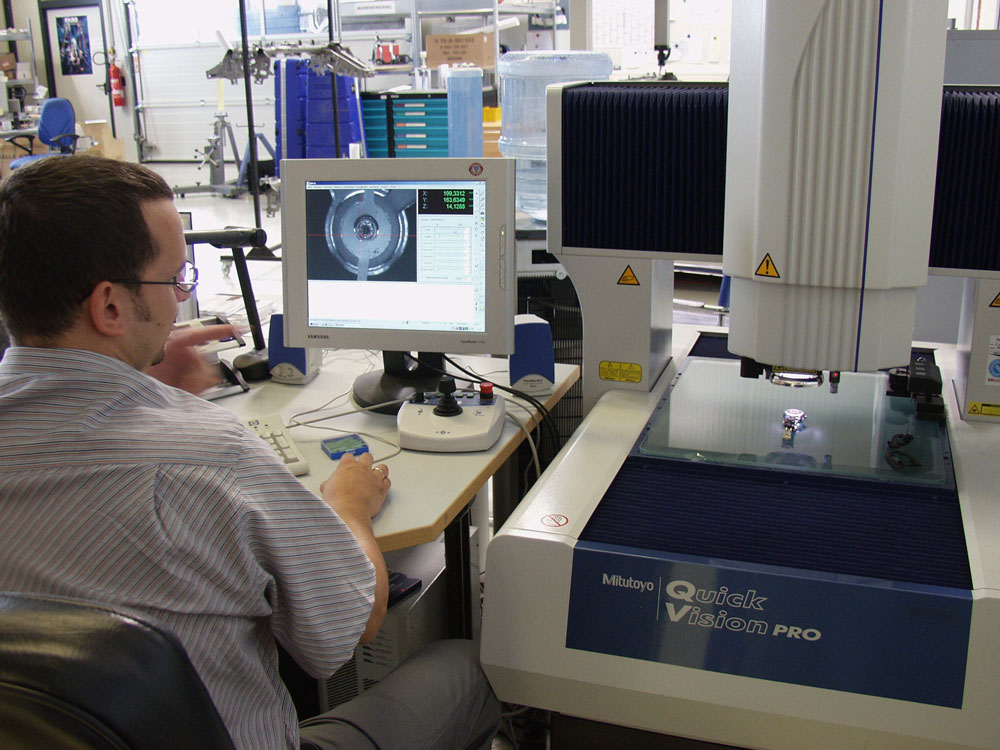

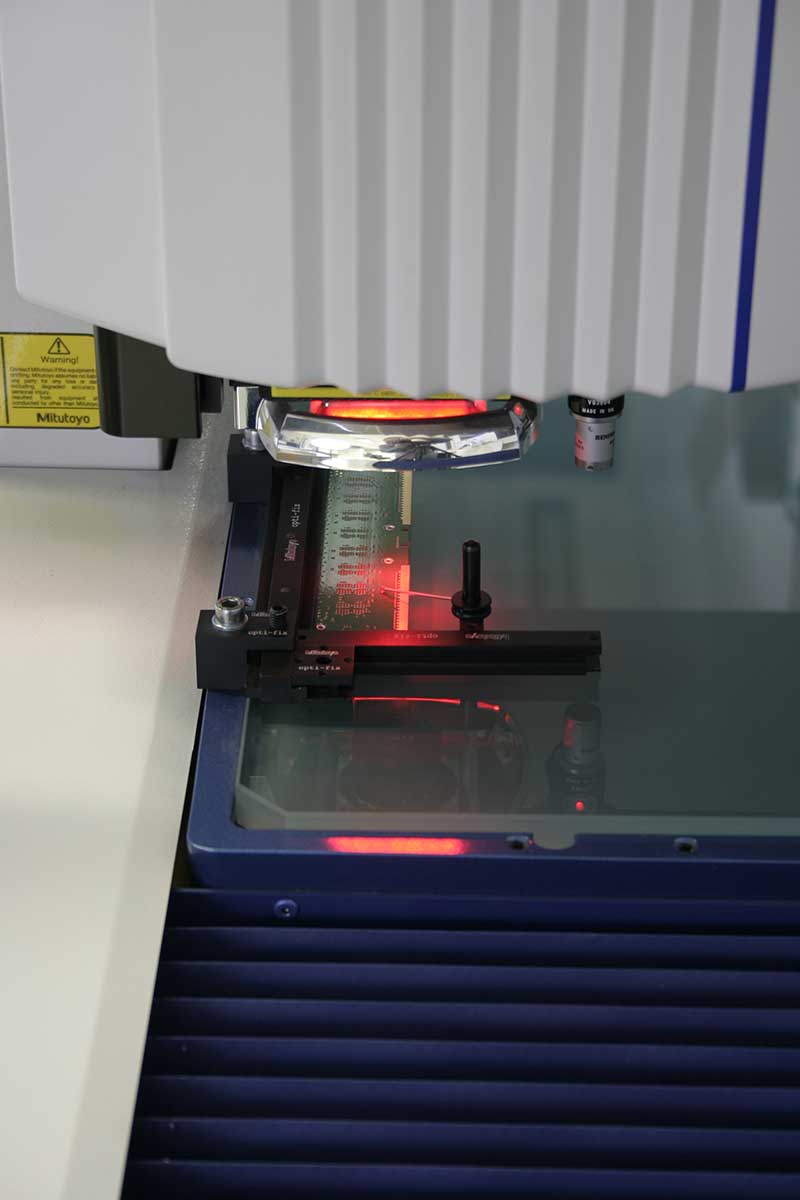

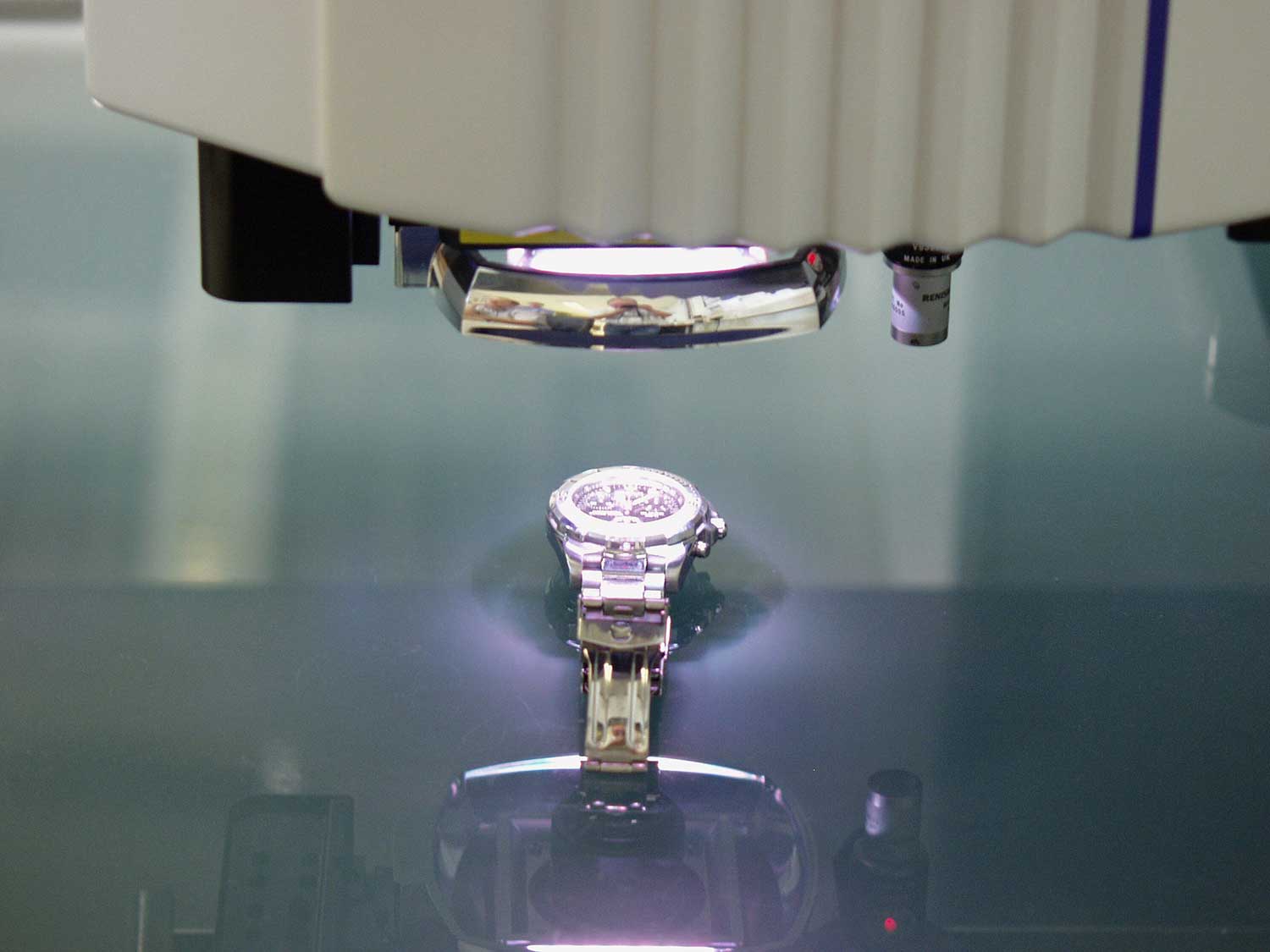

Optical coordinate measuring machines
| Manufacturer: | Mitutoyo |
| Max. Measuring range: | 400 x 400x 250 mm |
| Accuracy: | 2,2 μm (E1X(Y), MPE) |
| Special features: | are particularly suitable for hard-to-see component edges or surfaces or dynamic small parts |
Contour measuring devices

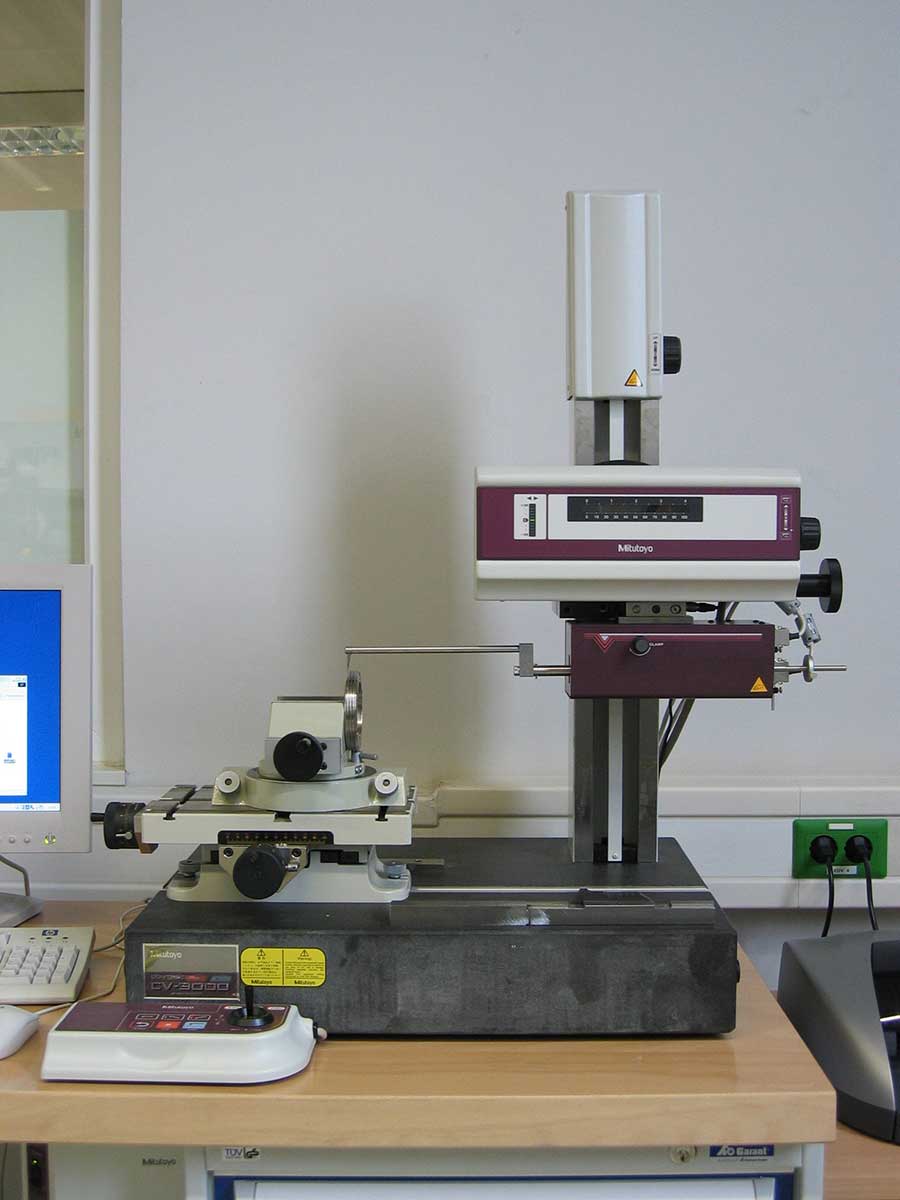

Contour measuring devices
| Manufacturer: | Mitutoyo |
| Max. Measuring range: | x-axis 100 mm z1-axis 50 mm |
| Resolution: | 0,05 μm |
| Special features: | semi-automatic, high precision |

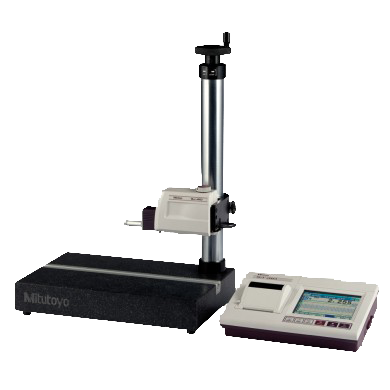

Roughness testers
Roughness testers
| Manufacturer: | Mitutoyo |
| Max. Measuring range: | 100 mm |
| Accuracy: | up to 1,9 μm (ELO, MPE) |
| Special features: | Testing of primary profile, roughness and waviness |
Laser measuring equipment
Laser Measuring equipment (different)
| Manufacturer: | FARO |
| Max. Measuring range: | Vol. up to 3.7 m (measuring or scanning arm) Radius 40 m (laser tracker) |
| Accuracy: | vol. max. deviation ±0.018 mm |
| Special features: | Non-contact measurement even at longer distances. Acquisition as a high-resolution, detailed 3D point cloud that maps even complex and reflective surfaces with high accuracy and repeatability. See also mobile measuring devices |
Part program creation
Corresponding to your wishes and specifications, we also create First Article Inspection Reports (FAIR) in accordance with VDA, individual measurement protocols, false color match and much more.
You have your own coordinate measuring machines and only need the measuring program / part program? We can also support with this. Whether for CNC-controlled CMMs or manually guided systems, we take over the programming for you in COSMOS or PolyWorks.
